VFD-Controlled Pump for Constant Pressure Water Supply
A pump driven by a motor controller that varies the frequency and voltage provided to the electric motor is Variable Frequency Drive (VFD) pressure pump, which is also known as a constant pressure pump or VFD controlled pump. On the other hand, pressure pumps using VFDs are also sometimes known as adjustable speed or frequency drives. Motor wear is avoided in VFD controlled pumps due to their ability to start and stop repeatedly.
Because of the variable frequency drive, the motor may gradually increase its speed to match the real flow and pressure demand placed on the pump, all while staying within the specifications of the pump. VFD pumps only operate the motor at the required speed to fulfill the water demand, in contrast to typical on-demand pumps that begin operating at full speed when turned on.
How to Choose a VFD Controlled Pump for Your Project?
Here are some of the noteworthy considerations to make when choosing a VFD controlled pump:
- Energy Consumption
Energy consumption should be the first criterion you evaluate when selecting a variable frequency drive or VFD controlled pump for your next project. You should be aware that the consumption of energy by a pump accounts for more than 90 percent of the entire cost of ownership of the pump, which is much greater than the cost of service, maintenance, and replacement components.
- Performance and Size
Performance and size are the next two aspects to take into consideration. When a variable frequency drive pump is utilized, the efficiency of the controlled motor should be improved, and it must operate at optimum efficiency independent of the needed flow and the accompanying speed of the motor or pump. In a nutshell, the input current of the VFD increases in a linear fashion in relation to the output power since the VFD may gradually get the pump up to full speed.
In a similar vein, the size of VFD controlled pumps needs to always be determined by the motor’s current and voltage rather than just the horsepower alone. Other factors, such as the full load amps, the service factor amps, the type of motor that will be used in the installation, single-phase input, high-altitude installations, and high or low ambient temperature, must also be taken into consideration in order to ensure that the variable frequency drive (VFD) will be sized correctly.
- Flow Rate
The flow rate is another consideration when selecting a pump for your project that will be controlled by a variable frequency drive (VFD) or constant pressure pump. The flow rate that is required must be able to be provided by the pump, and this number is often determined before the installation takes place. Note that throttling or restricting devices such as valves, inlet vanes, outlet dampers, and diffusers are among the most prevalent approaches used for flow control. Recirculation systems and mechanical speed changers are also occasionally used.

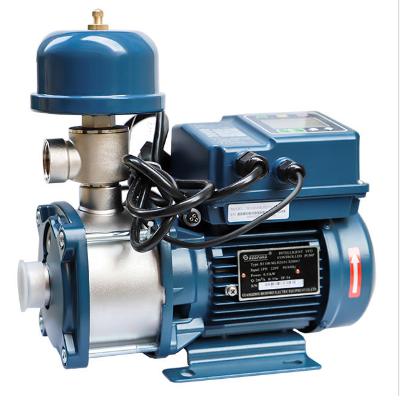

The Best VFD Controlled Pump: B1100 Series from Bedford
Are you interested in learning about the best product that is currently on the market now that you’ve read the introduction and the many variables that should be taken into consideration when selecting a VFD controlled pump? So, in this section, we are going to discuss the intelligent constant-pressure water pump manufactured by Bedford: B1100-Bedford Electric.
The B1100 series is a sophisticated constant-pressure water supply inverter pump with a wide variety of functions and provides outstanding overall performance. Automatic constant pressure, automatic sleep mode when no one is using the water, and several fault warnings, like high/low water pressure alarm functions, are all features of this intelligent constant pressure inverter pump.
Troubleshooting Tips of B1100
- High/low water pressure alarm: Check if the system pressure is too high or too low.
- Sensor disconnect/short circuit: Check if the pressure sensor is properly installed.
- Controller error: Turn off the power and contact the manufacturer.
About Bedford
For the sake of your information, the water supply equipment manufactured by Bedford is utilized frequently in a variety of contexts, including commercial, industrial, and residential sectors. In China alone, we have over 150 offices and distribution partners, and we ship our wares to over 70 different nations and regions. Without any doubt, our products have garnered a great deal of appreciation from both the general public and individual consumers.
