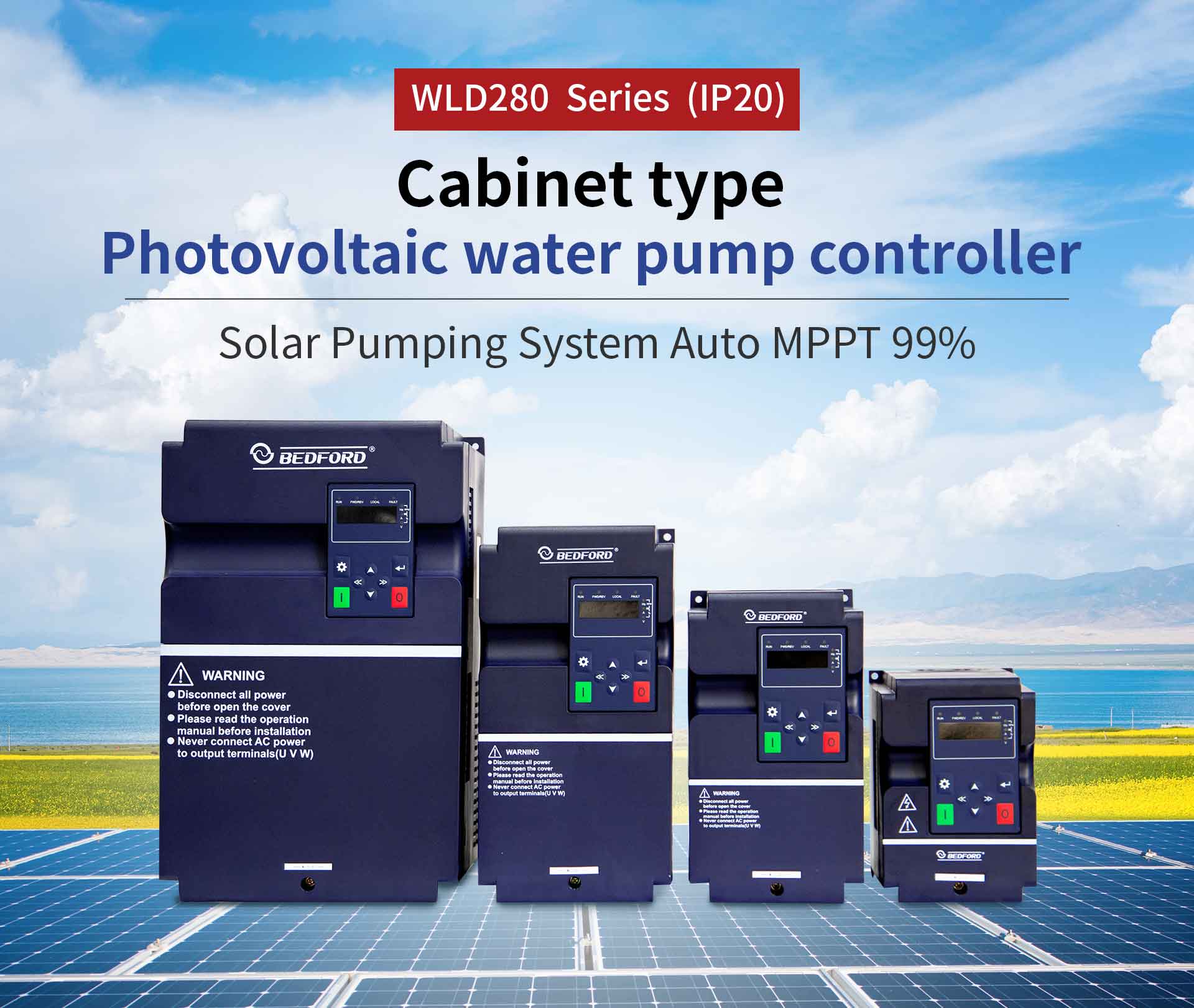

WLD280

Suitable for solar pumping systems, agricultural irrigation, remote water supply and applications requiring PV-based pump control with protection functions.

product details

Product Overview

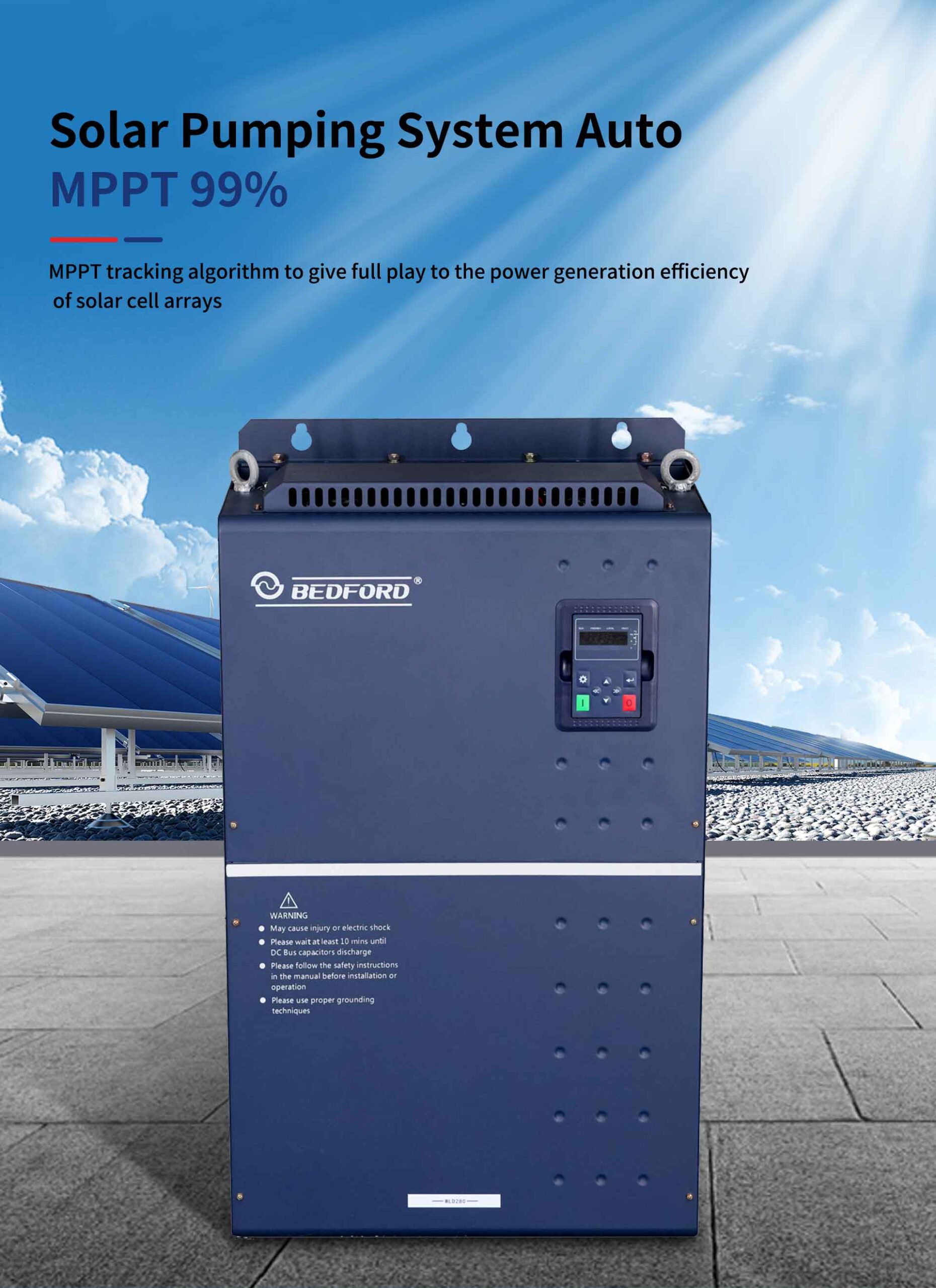

WLD280 is a solar photovoltaic pump controller for PV water supply systems. It supports DC photovoltaic input and AC power input, drives three-phase pump motors and provides water level signal detection for wells and reservoirs.

The controller is suitable for solar pumping systems, agricultural irrigation, remote water supply and applications requiring PV-based pump control with protection functions.

Key Selling Points

Supports photovoltaic DC input and AC power input.
220V class supports DC220V to DC370V or AC220V +/-15%.
380V class supports DC420V to DC720V or AC380V +/-15%.
Water level detection terminals are provided for wells and reservoirs.

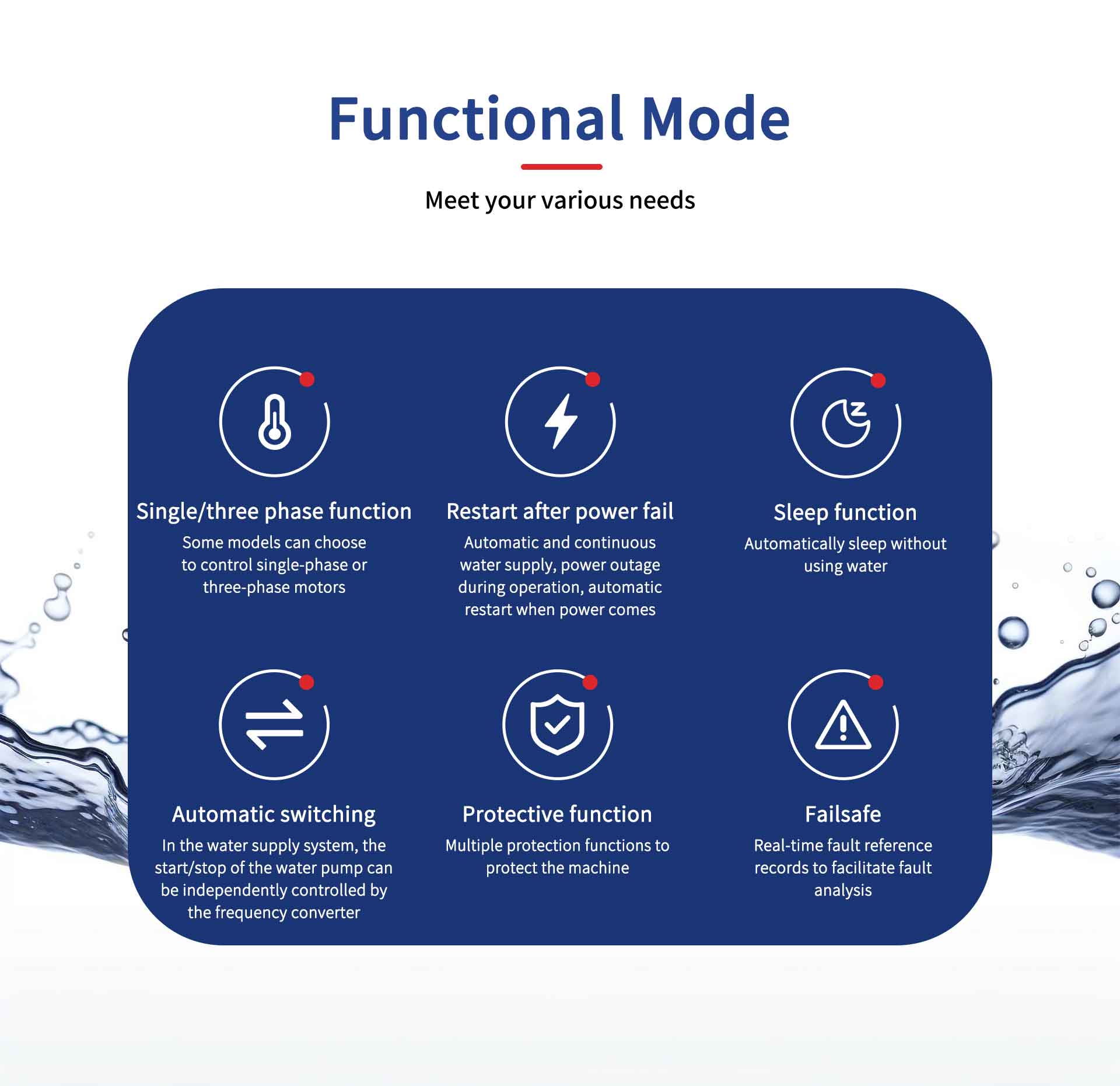

Keypad supports run/stop, parameter setting, monitoring display and fault reset.
Fault protection includes over-current, over-voltage, DC bus under-voltage, motor overload, controller overload, phase failure, IGBT overheat and water shortage.

Core Parameters

Item	Details
Voltage, 220V class	DC220V to DC370V or AC220V +/-15%
Voltage, 380V class	DC420V to DC720V or AC380V +/-15%
Power range, 220V class	0.75kW to 55kW
Power range, 380V class	0.75kW to 200kW
Rated output current range	220V: 4.5A to 210A; 380V: 2.1A to 380A
Motor output	Three-phase AC output through U/V/W terminals
Default upper frequency	50.00Hz
Default lower frequency	30.00Hz; shutdown when operating frequency falls below this value
Default restart delay	10.0s after power on

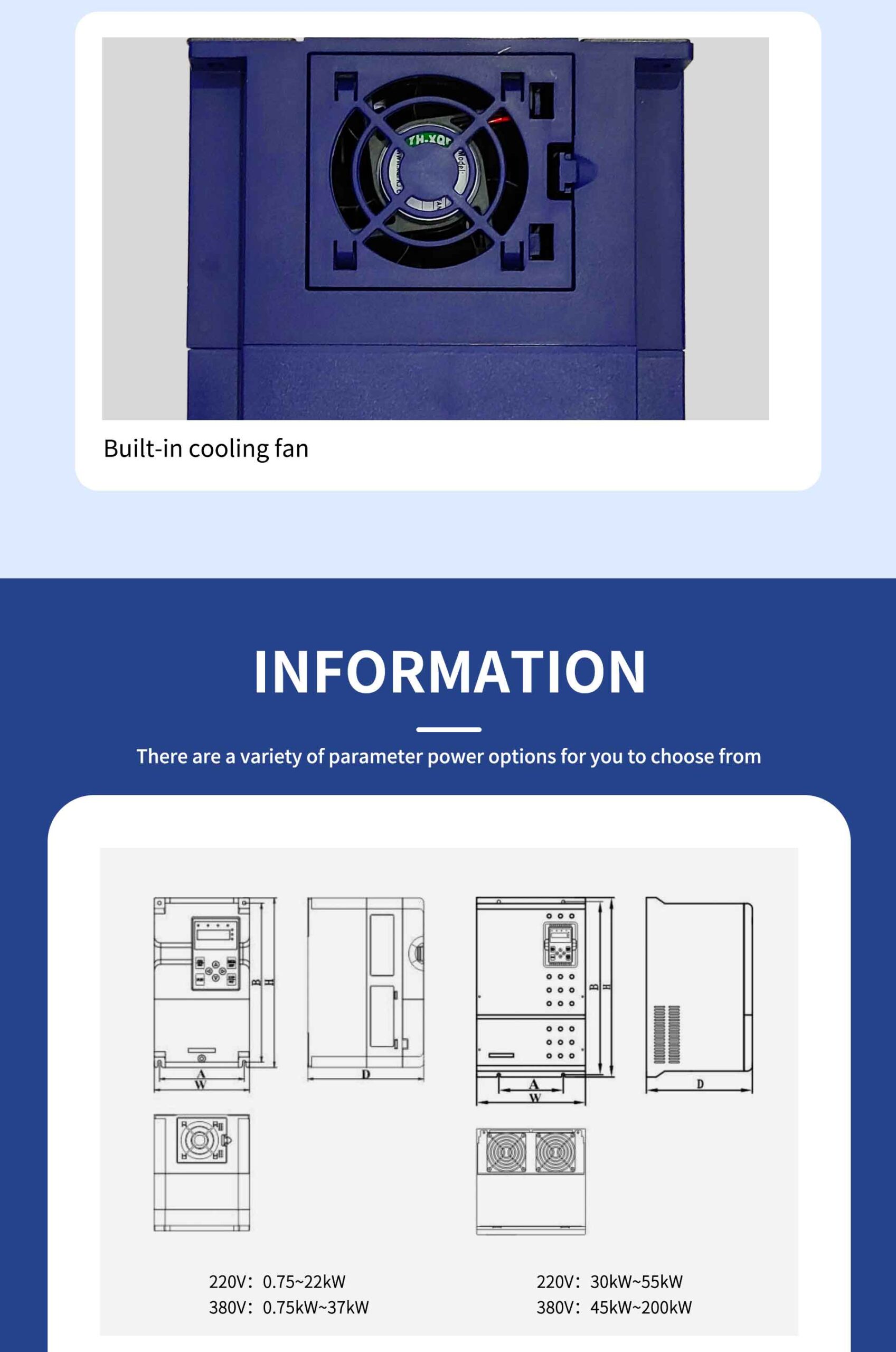

External dimension range	Varies by power, from about H186 x W126 x D163.8mm to H1270 x W503 x D362mm

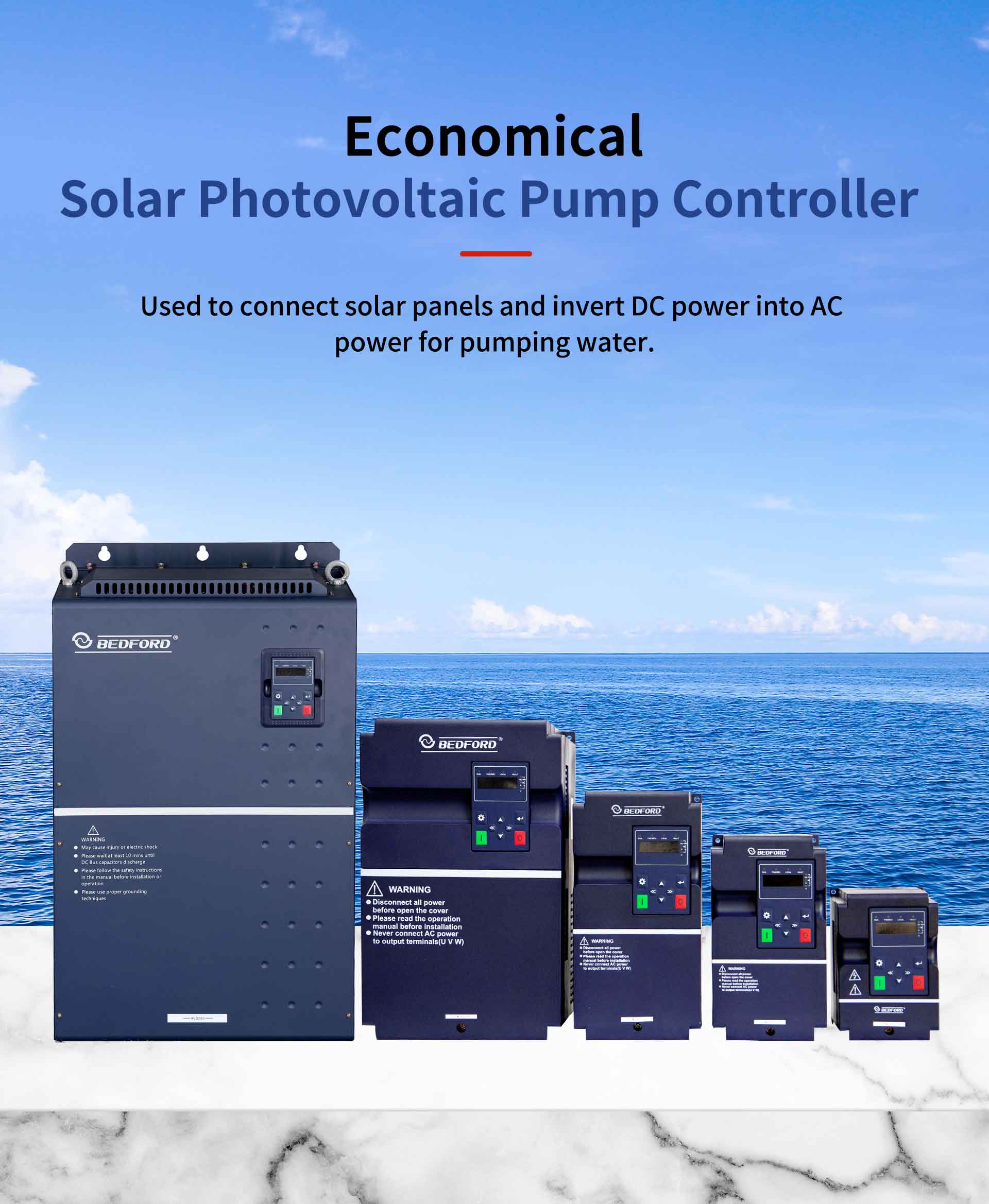

Model Coverage

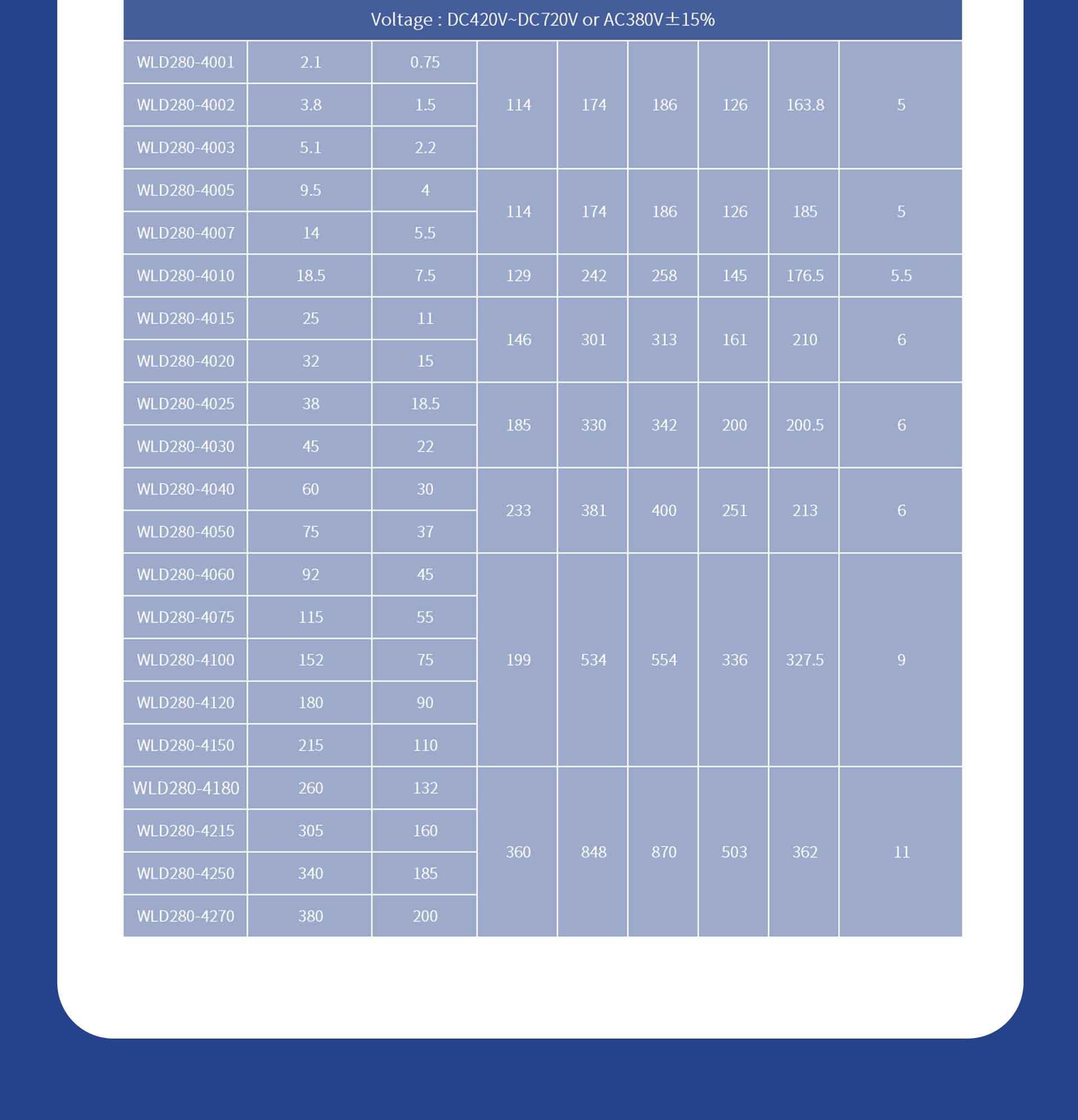

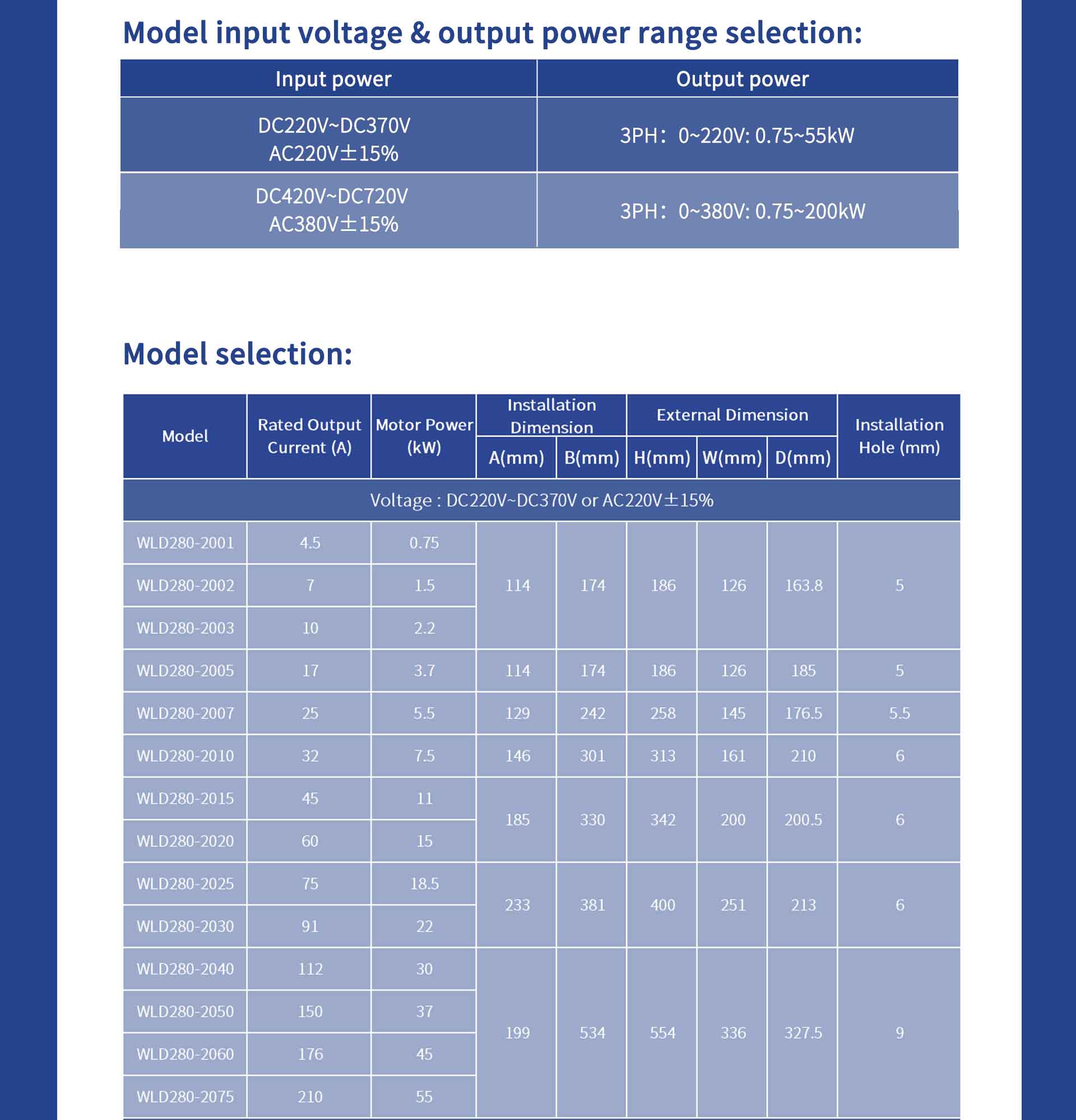

Model / Voltage Class	Power Range	Notes
WLD280-2001 to WLD280-2075	0.75kW to 55kW	220V class
WLD280-4001 to WLD280-4270	0.75kW to 200kW	380V class

Interface and Control

Main circuit terminals include AC input, DC input, motor output and grounding terminals according to the model power class.
DI1 and DI2 are well water-level detection signal inputs. If only one well signal is used, DI1 and DI2 should be connected together.
DI3 and DI4 are reservoir water-level detection signal inputs. If only one reservoir signal is used, DI3 and DI4 should be connected together.
COM is the input common terminal for water-level detection signals.

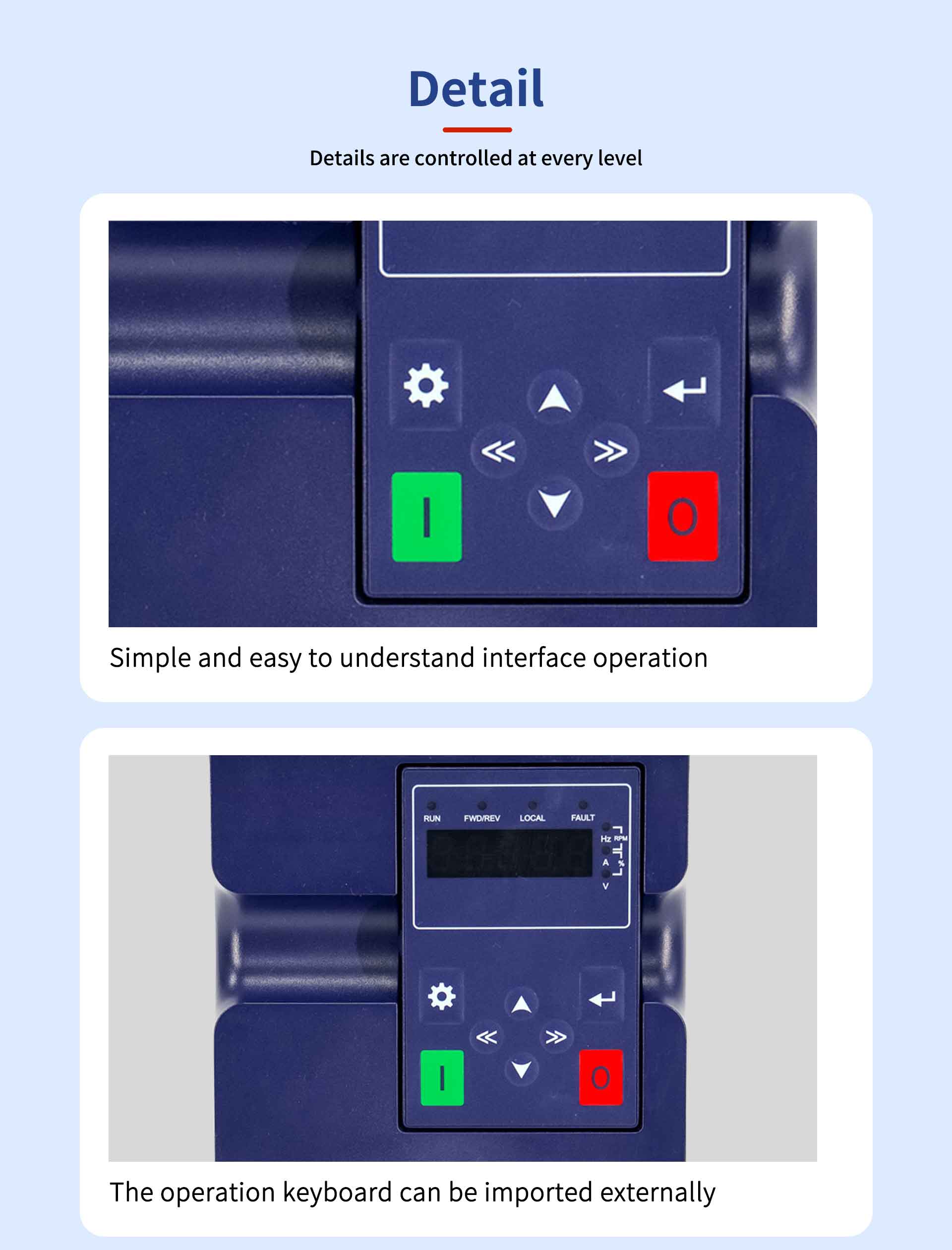

Run, stop/reset, enter, programming and shift keys support basic commissioning and operation.

Application Scenarios

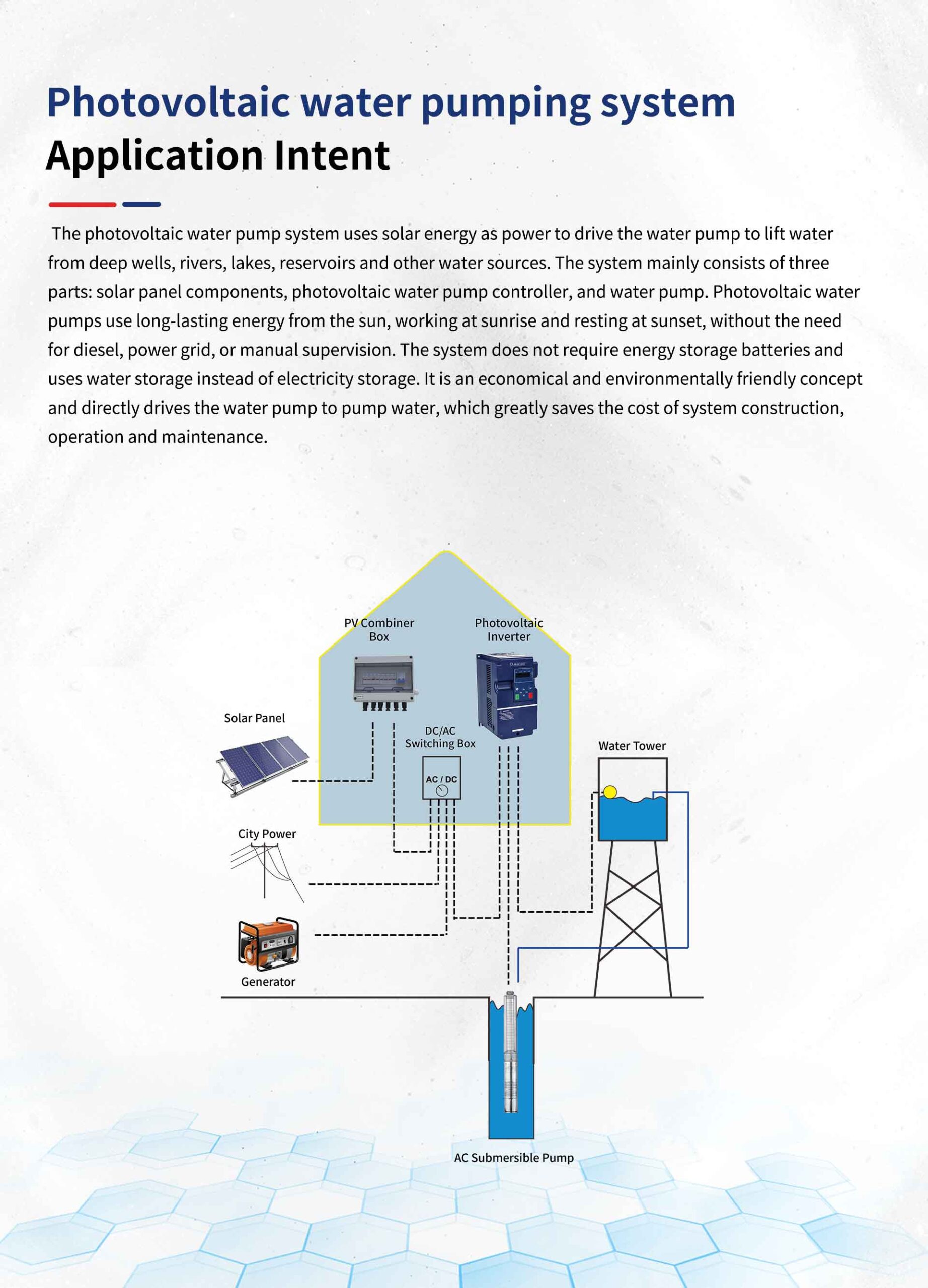

Solar photovoltaic water pumping.
Agricultural irrigation.
Reservoir and well water supply.
Remote pumping systems using PV array power with optional AC debugging or backup power.

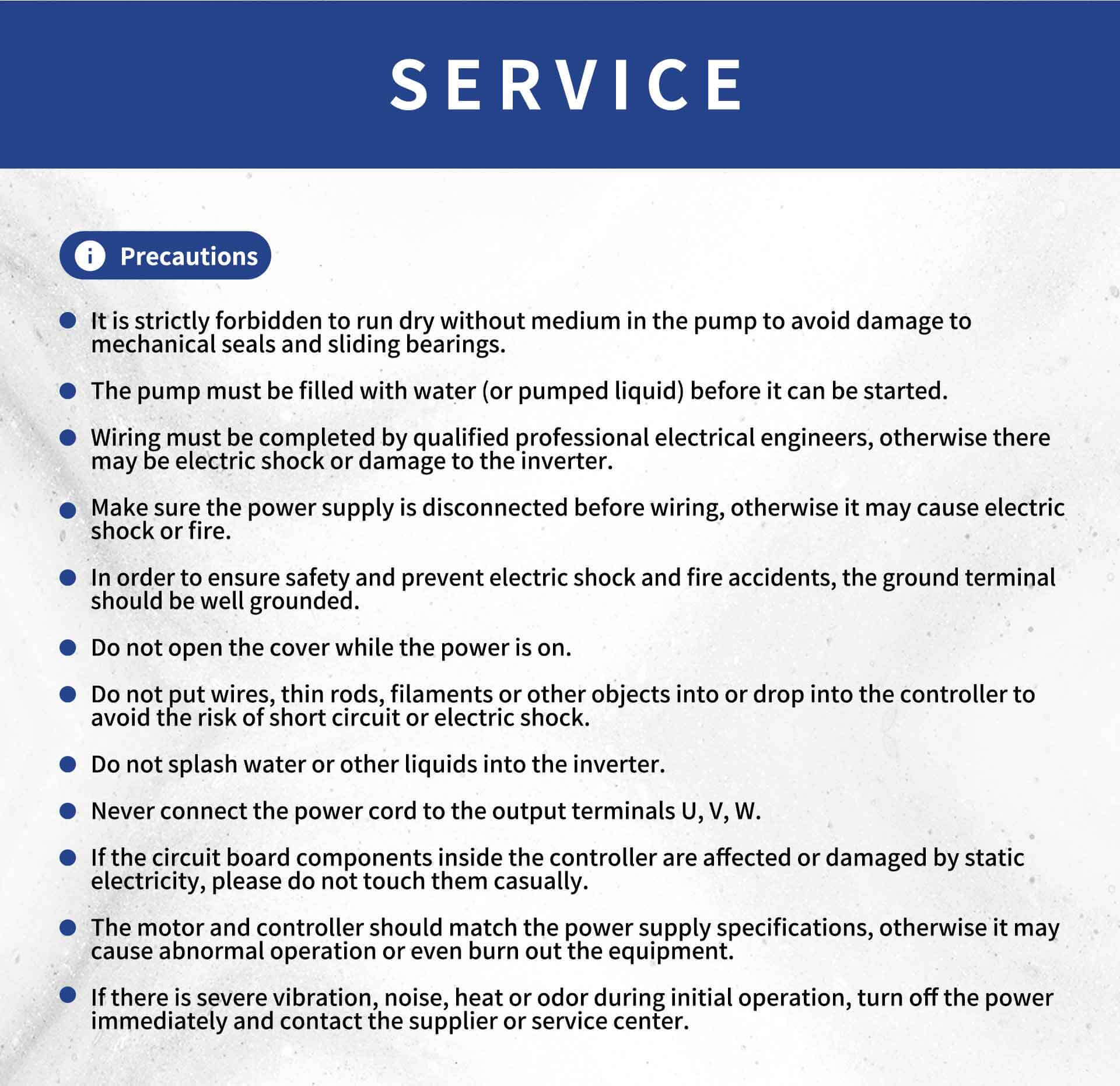

Installation and Use Notes

The pump must not dry-run without water or liquid medium.
Before starting, ensure the pump is filled with water or other liquid.
Wiring must be performed by qualified electrical personnel after the power is off.
If there is no protection diode at the input bus, do not close the PV array switch and power grid switch at the same time.
When switching power source mode, follow the manual’s power-on sequence and wait for controller discharge where required.
