Wastewater lift station speed control sounds simple: when less sewage arrives, slow the pump; when more arrives, speed it up. But a lift station is not a clean-water booster set. The liquid can carry rags, grit and grease, and the pipe still has to move that material away. A slower motor is useful only when the whole station continues to do its job.
So the honest answer is not that every sewage pump needs a VFD. A fixed-speed pump can be a sensible choice. Variable speed becomes interesting when changing inflow, frequent cycling, downstream flow limits or a need for gentler starts create a problem that speed control can actually solve. The pump, wet well, rising main and control system have to be considered together.
First, picture what the station is doing

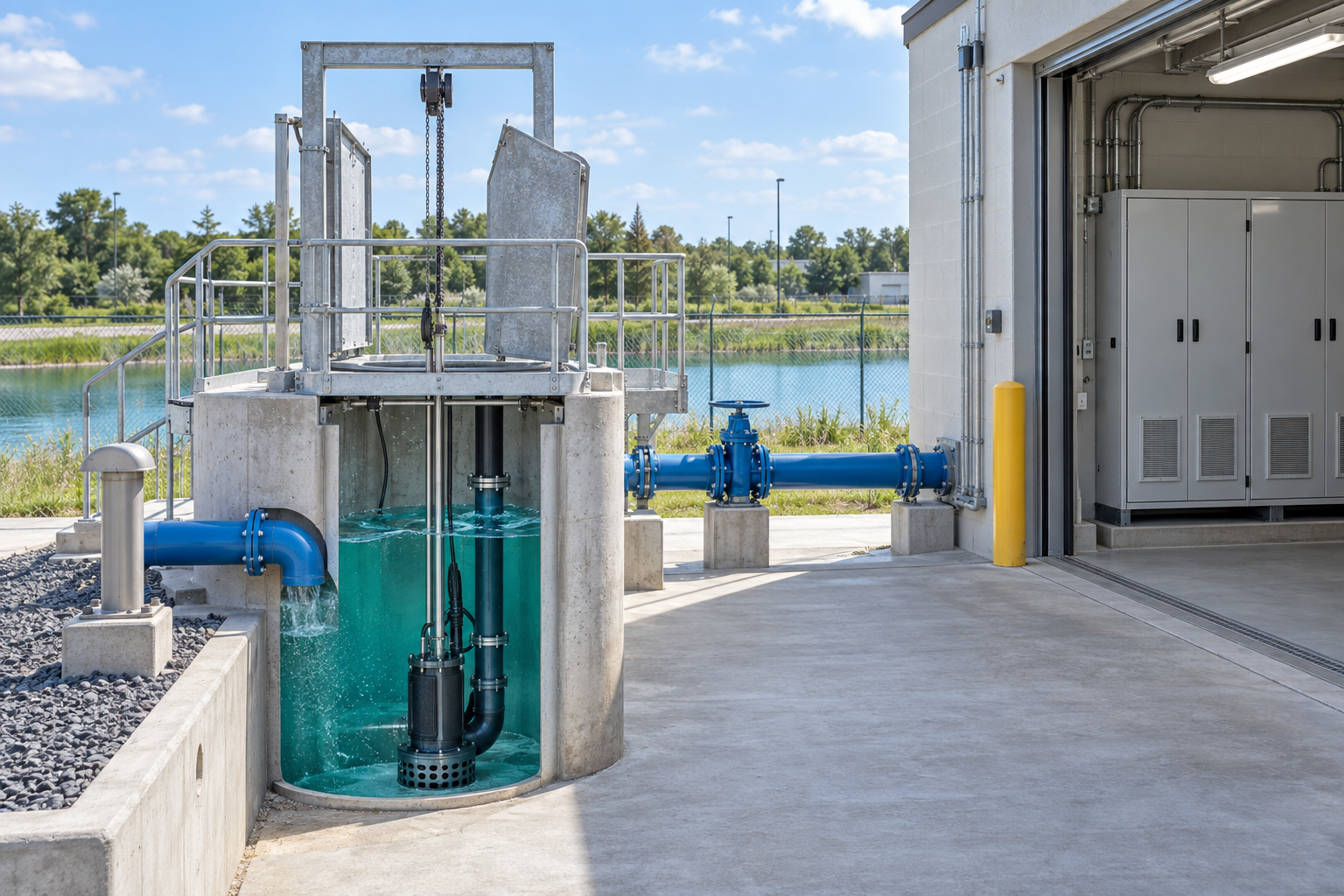

Wastewater enters a wet well, which is a holding chamber rather than a treatment tank. When the liquid reaches a start level, a pump sends it through a discharge pipe to a higher point. A check valve helps prevent the discharge from flowing back when the pump stops. Level sensors or floats tell the controls when to start, stop or raise an alarm. The U.S. Environmental Protection Agency’s lift-station fact sheet describes the wet well, pumps, controls and power supply as parts of one system.

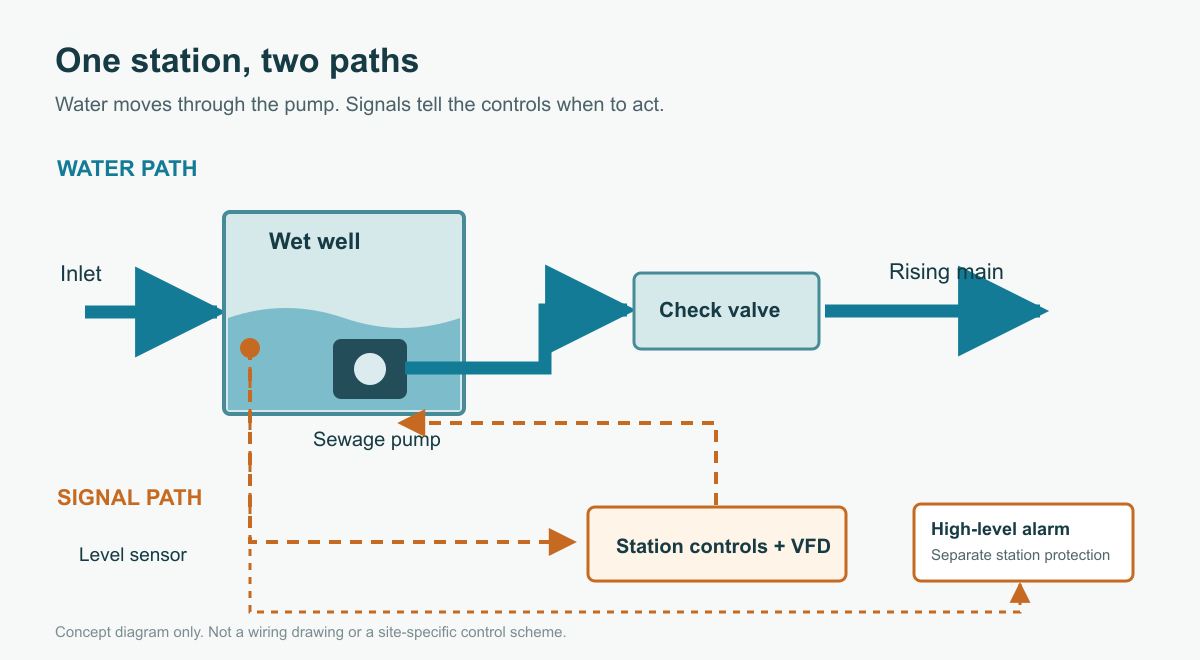

There are two paths to keep separate. Wastewater travels from the inlet through the well and pump into the rising main. The level reading travels to the controls, which decide when the motor should run. The high-level alarm is another layer of station protection; it should not be mistaken for something the drive alone provides.
What happens with an on-off pump?
In a common fixed-speed arrangement, the well fills to a start level, the pump runs at its normal speed, and the well drops to a stop level. Then the cycle repeats. The pump is working at its intended running speed while it is on. That simplicity can be valuable, especially where the pump and rising main are already well matched and the number of starts stays within the equipment maker’s limits.
It is tempting to call every start-stop cycle a defect. It is not. The real question is whether the well has enough usable volume and whether the pump runs long enough between starts. Making the wet well much larger is not a free fix either: wastewater that sits too long can create odor and maintenance problems. The EPA fact sheet discusses this balance between rapid cycling and long detention time.
If inflow is fairly predictable and the station already performs reliably, a VFD may add cost and commissioning work without a clear benefit. The strongest reason to add one is a defined operating problem, not the fact that variable speed is available.
What wastewater lift station speed control changes
A VFD changes the frequency supplied to a suitable motor, so the pump can run at more than one speed. In a lift station, that can make starts and stops gentler and allow discharge to follow changing inflow more closely. It may help where a fixed-speed pump repeatedly empties a small well and then waits for it to refill, or where the downstream system cannot accept an abrupt flow surge.
But “match inflow” does not mean “keep the pump crawling all night.” At very low speed, a sewage pump may no longer move enough water through the rising main to carry solids. The pump motor may also have a minimum permitted speed for cooling or reliable operation. Xylem’s technical paper on variable-speed wastewater pumping explains that poorly applied low-speed operation can increase clogging and, in some systems, energy use. Those are system risks, not proof that VFDs are unsuitable in general.

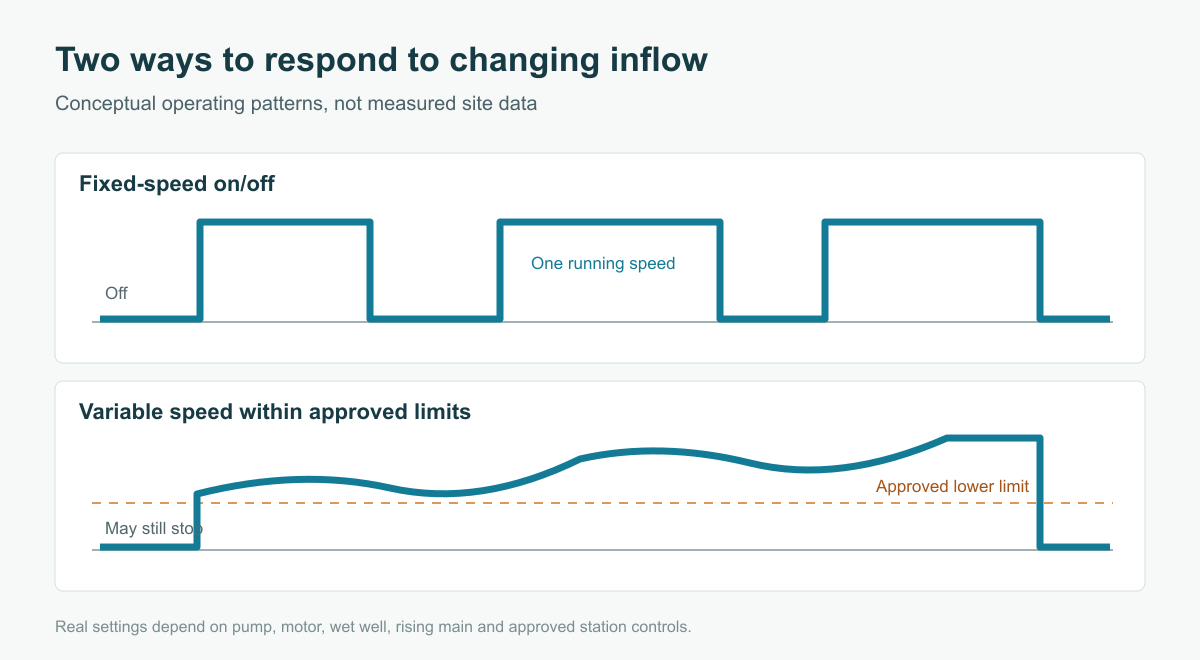

The comparison is easiest to see as a pattern. Fixed speed alternates between off and one running speed. Variable speed can work between approved limits as demand rises, but it may still stop and wait when inflow is low. The important feature is the approved lower speed limit, not a promise that the pump will run continuously.
Why a slower pump does not always mean a smaller bill
In a circulation loop, slowing a pump can cut friction losses sharply. A sewage lift station may be different: much of the work can be lifting wastewater to a higher elevation. The required vertical lift does not disappear when the motor slows down. If the pump then operates far from a useful point, or if partial blockage develops, it may run longer to move the same volume.
This is why a blanket energy-saving percentage would be misleading here. A fair comparison uses the station’s pump curve, pipe route, wet-well levels, inflow pattern and power readings. Xylem notes that the potential for savings changes with the balance of static lift and pipe friction. A drive can provide control flexibility; it cannot rewrite the station’s hydraulics.
Where B503PRO fits in the conversation
For a suitable three-phase sewage-pump motor, the BEDFORD B503PRO general-purpose VFD is a product to discuss when a project needs adjustable motor speed. Its published specifications include sensorless vector and V/F control, programmable inputs, analog inputs, relay outputs, built-in PID and communication capability. Those features provide a basis for integrating the drive into a project-specific pump-control system.
That is deliberately narrower than claiming a ready-made lift-station package. BEDFORD has not supplied a standard sewage-station control scheme for this article. The level sensor arrangement, start and stop sequence, minimum operating speed, alarms, backup response and any requested customization must be agreed for the actual pump and site. The final B503PRO size must match the motor’s voltage and rated current, not just a convenient kW label. A drive also needs a suitable protected installation environment; the product’s published working conditions do not make it a submerged or washdown device.
The VFD controls the motor. It does not prevent a blocked impeller, replace the check valve, create an independent high-level alarm or guarantee that the rising main stays clear. Those jobs belong to the whole station design and maintenance plan. For a closer look at one of these limits, our separate article on wastewater pump minimum speed explains why the lowest selectable frequency is not automatically a safe operating point.
The useful takeaway
Think of wastewater lift station speed control as a way to shape how a suitable pump operates, not as an automatic upgrade for every station. Fixed-speed on-off operation may remain the clearest solution where it already meets the flow and reliability needs. Variable speed is worth discussing when it addresses a specific cycling, flow or operating issue, and when the pump and pipe system have a verified safe speed range.
If you are considering B503PRO for a sewage-pump project, send BEDFORD the pump and motor details, wet-well levels and intended control sequence so the team can review the fit and possible customization.
