The outdoor water outlet is the part a farmer uses. The equipment behind it is what a supplier needs to understand. In this customer example of solar irrigation in Panama, a deep-well pumping installation inside a small building supplies an outlet used for agricultural irrigation outside. BEDFORD WLD280 is the inverter identified for the project.
The customer photos bring that arrangement into focus: a wellhead and pipework indoors, a wall-mounted controller, and solar panels beside a blue storage tank outdoors. They show a practical installation, not a performance test. For a dealer planning a similar project, the useful question is how to make those pieces fit the farmer’s daily routine.
Start at the outlet, then work back toward the well
It is tempting to start a quotation with the pump power. Instead, start with when and where the farmer needs water. An outlet used to fill a container has a different job from a line feeding sprinklers. Both can deliver water, but the pressure and timing requirements are not the same.
For this Panama case, the confirmed use is outdoor agricultural irrigation from the deep-well system. The photos do not establish the crop, irrigated area, well depth or daily water volume. That leaves a clear lesson for another site: copy the questions, not an assumed equipment size.
Ask the farmer to describe a normal watering session. Which area is watered first? How long does it take? Is water needed early in the morning, during daylight or after sunset? Does the farthest outlet still deliver enough water? Those answers are more useful than a request for the biggest pump within a budget.
The tank deserves a conversation of its own

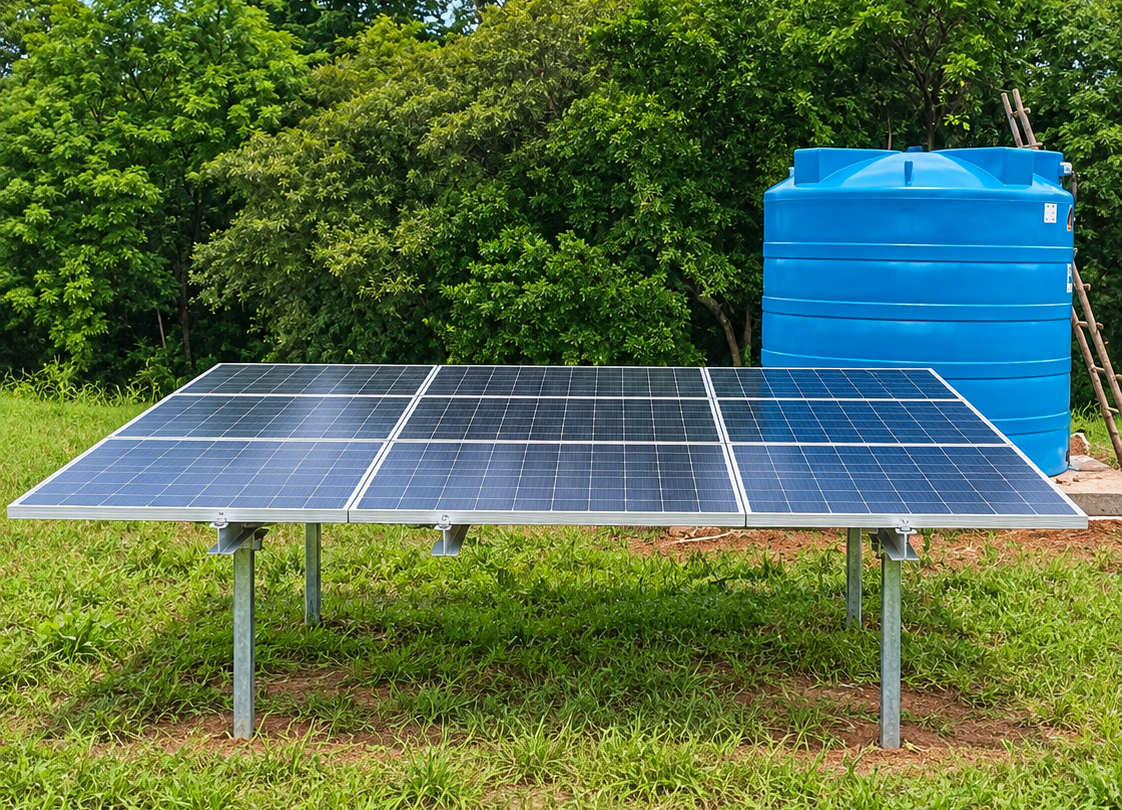

A storage tank is visible beside the solar array. Its capacity and exact connection to the irrigation outlet are not documented here, so it would be wrong to describe an unverified flow path. Its presence does, however, raise an important planning question: should pumping and watering happen at the same time?
In a system designed to fill a tank, stored water can help separate the pumping schedule from the watering schedule. That does not mean any tank will provide enough pressure, or that it will cover a whole cloudy day. Height, usable storage and the downstream irrigation equipment still matter.
FAO’s explanation of water harvesting and storage describes storage as a buffer against variable water availability, alongside demand management and groundwater monitoring. For a farm supplier, the practical takeaway is simple: discuss the water reserve before promising a watering schedule.
For a new project, write down how much water must remain available when the pump is not supplying it. Then have the installer check the tank’s usable volume and delivery arrangement. A tank at ground level should not be assumed to run a pressurized irrigation line without additional equipment.
a
Where WLD280 fits into solar irrigation in Panama

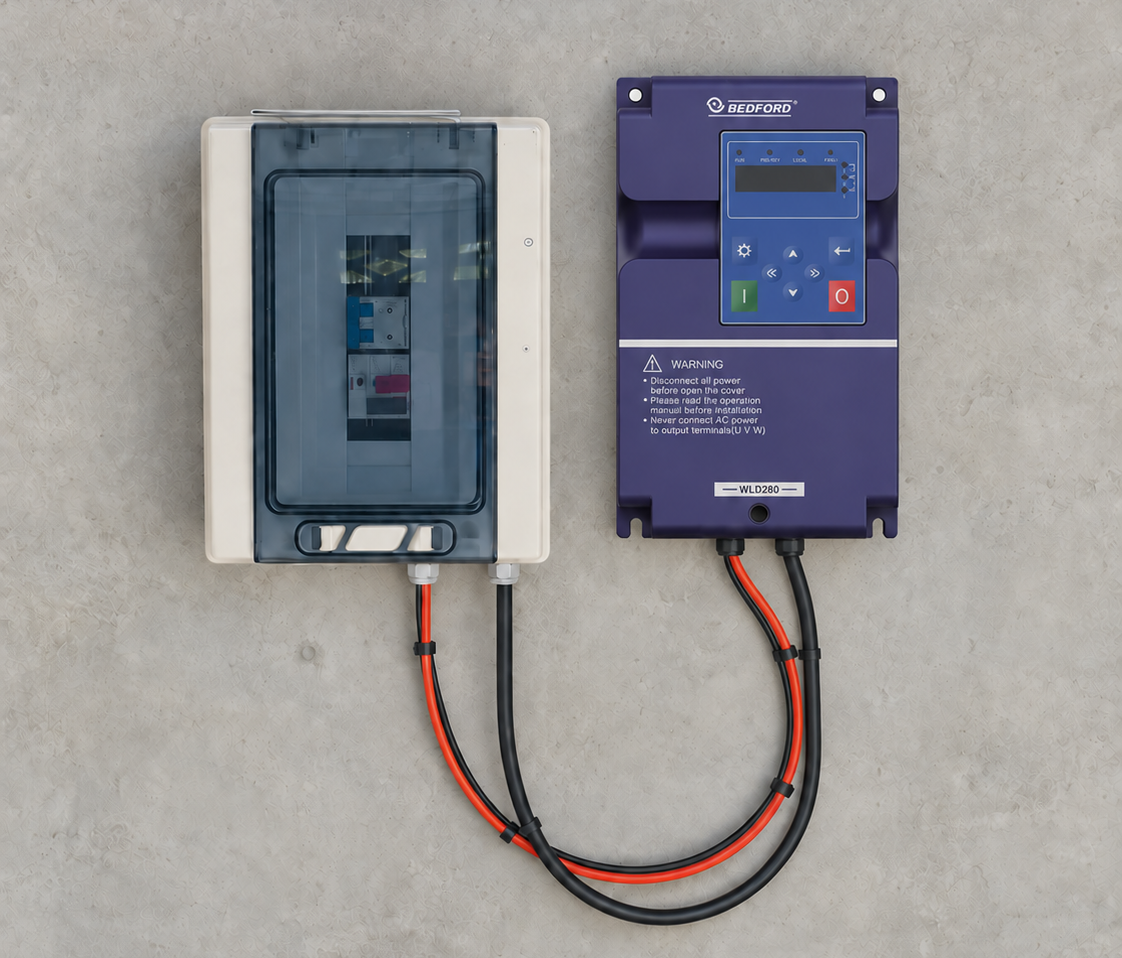

The BEDFORD WLD280 pump controller manages electrical power supplied to the pump motor. The pump lifts the water; the controller does not replace the pump, the well or the storage system.
BEDFORD’s current product information lists photovoltaic DC input, AC input and three-phase motor output, together with well and reservoir water-level signal inputs. It also lists water-shortage and motor-overload protection. These are product capabilities, not a claim that every optional connection or operating mode was used in this installation.
For a dealer, the water-level inputs are worth discussing with the installer. A low-water condition in a well and a full storage tank call for different responses. The selected sensors, wiring and settings must make the controller respond correctly to each one. Having a protection feature on the product list is not the same as testing it at the site.
AC and solar input support also needs a careful explanation. It is not permission to connect two supplies together or assume an automatic, uninterrupted changeover. The electrical design and the instructions for the exact model determine the safe arrangement. A qualified installer should handle that work.
What a dealer should collect before quoting a similar installation
A few concrete details make a recommendation easier to defend. The following is a practical enquiry sheet for another farm, not a list of measured results from this Panama installation.
| Ask for | Why it changes the recommendation |
|---|---|
| A clear pump motor nameplate photo | Voltage, phase and rated current help establish electrical compatibility. |
| Water level while pumping and the outlet elevation | The pump must lift water under working conditions, not just when the well is resting. |
| Daily water need and watering times | These help determine whether direct supply, storage or a separate delivery stage is needed. |
| Pipe length, diameter and irrigation equipment | The route and outlet requirements affect the pump duty. |
| Solar panel specifications and array layout | The electrical supply must match the selected controller, rather than being chosen by panel count alone. |
| Water-level devices and intended stop/restart behaviour | The installer needs a clear operating plan and a way to test it. |
FAO’s 2018 review of solar-powered irrigation also points to well depth, storage and system configuration when considering project economics. It does not provide a payback figure for this farm. Neither do the customer photos, so no savings percentage or repayment period is claimed here.
Make the handover useful when the installer has left
For another installation, a useful handover would show the owner the normal operating display, the outdoor water delivery and what to do when the pump stops. Label the controls in language the owner understands. Keep a photo of the approved settings and explain which controls should not be changed without support.
It is also worth demonstrating the agreed low-water and tank-full responses safely, following the equipment instructions. Do not test dry-running protection by deliberately running a pump without water. The aim is to verify the controls without creating the damage they are meant to prevent.
The strongest point of this Panama example is the connection between a visible field need and a real pump-control installation. WLD280 has a defined role in that arrangement, but a successful recommendation still begins with the water source, the watering routine and the person who will operate it.
